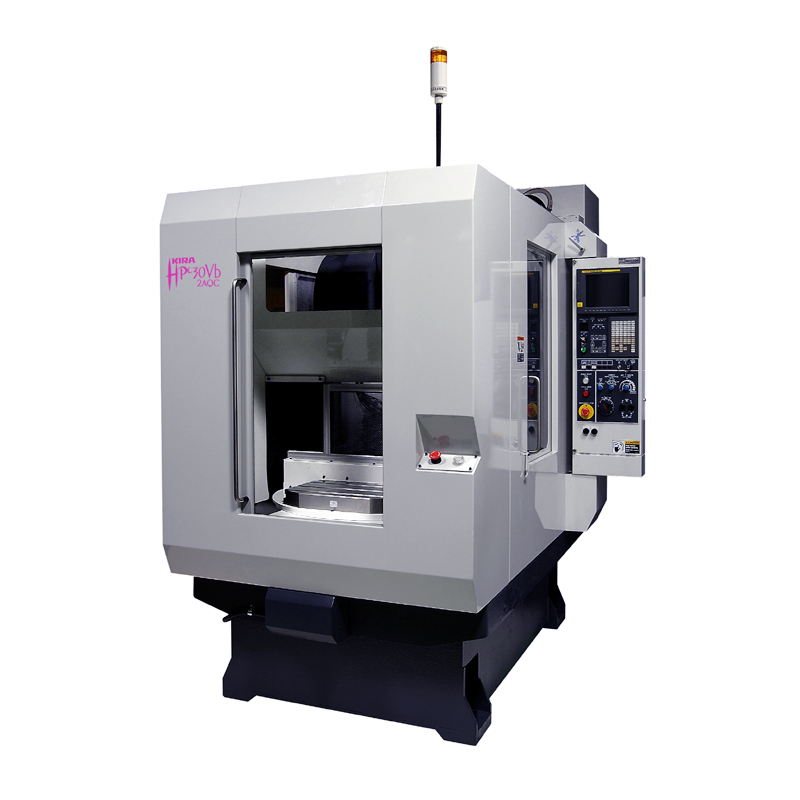

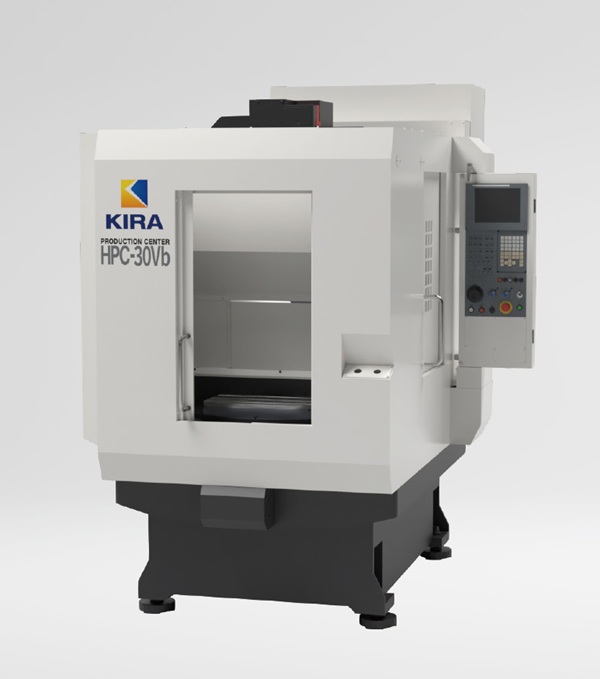

HPC30Vb
High productivity machine, #30 pallet changer machine
High Speed machine, Rapid feedrate 56m/min, Total 20 tools ATC, Tool change time C-C1.7 sec
The machine is developed for thorough high productivity
Ball screw pretension system is standard equipment for prevent thermal displacement
The spindle construction achieces high rigidity machining

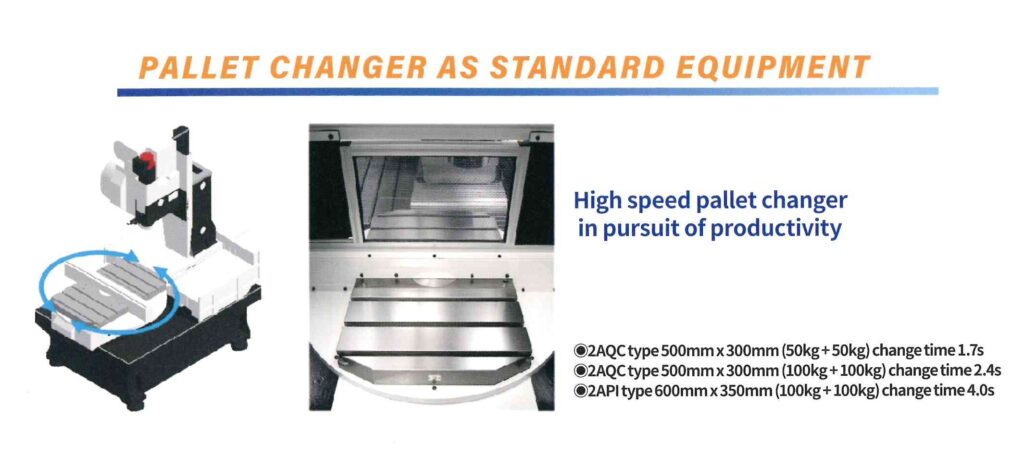

High Speed and High Accuracy Pallet Changer by mounted carvic coupling
| Spindle Size / Design | BT30 |
| Spindle Speed (r.p.m) | 15,000 |
| Power (Kw) | 3.7 / 2.2 |
| Numerical Controller | FANUC Oi-MD |
| Axis Slides Design | LINEAR RAIL |
| X Axis Stroke (mm) | 350 |
| Y Axis Stroke (mm) | 290 |
| Z Axis Stroke (mm) | 320 |
| Rapid Rates (m/min) | X:56 Y:56 Z:56 |
| Table Size (mm) | 500 x 300 |
| Max Table Weight (Kg) | 50 + 50 (100 + 100) |
| Twin Pallet Option | 2 PALLETS |
| Machine Weight (Kg) | 3200 |
| Machine Dimension LWH (mm) | 1,500 x 2,695 x 2,380 |
| Tool Changer Style | SERVO ARM RANDOM |
| Tool Change T/T (sec) | 1.7 |
| Tool Capacity (pcs) | 20 |
