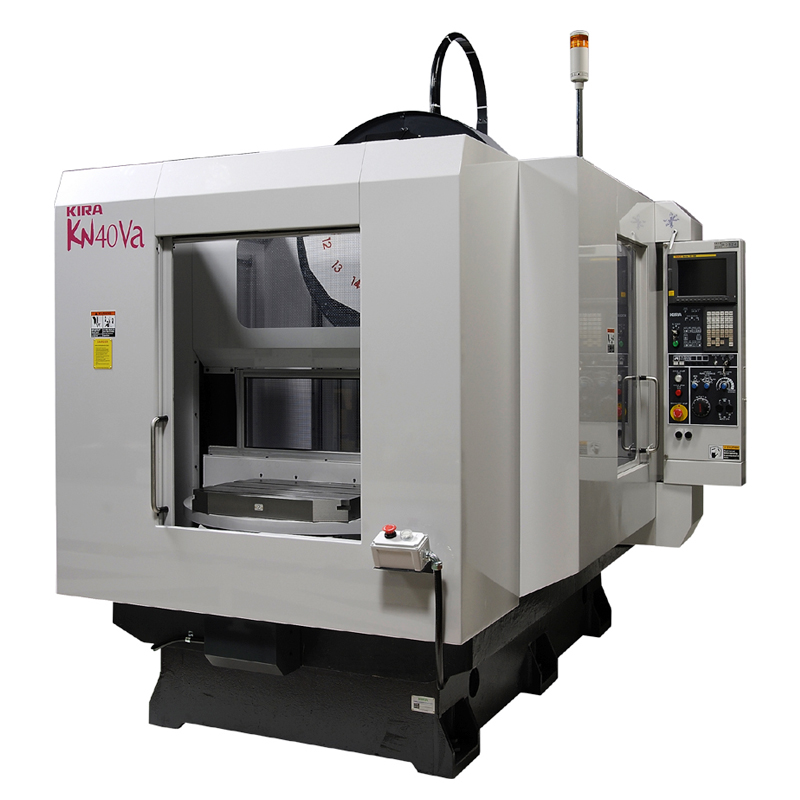

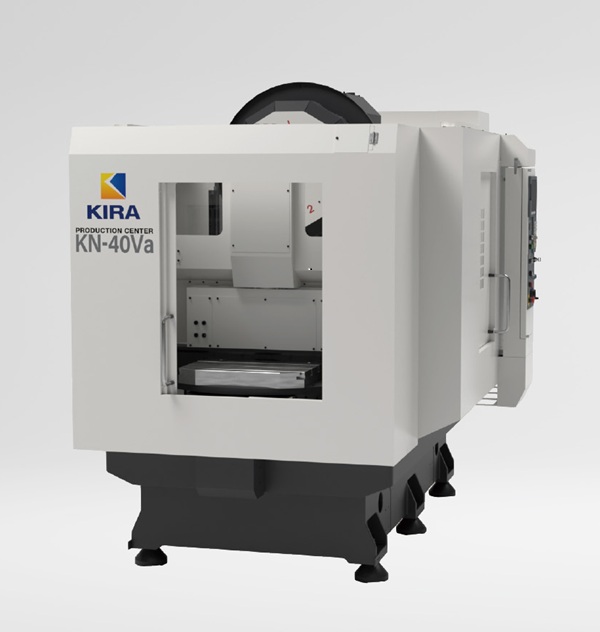

KN40Va (2 API)
Good design for product line and flexible design for various fixture
3 axes column movement machine which is suitable for product line and
X axis Long stroke version (option)
X axis stroke : 1200mm / 2000mm / 4000mm / 4500mm
Long stroke type is available for long parts or multiple parts which takes advantage of column movement type
It is available for high production pallet changer (option)
Improved productivity with high speed and high accuracy pallet changer by mounted carvic coupling
Direct ATC system
No. of tools
standard : 12
option : 14
Spindle speed
standard : 4000min-1, 6000min-1
option : 10000min-1, 6000min-1(10hP)
| Spindle Size / Design | BT40 |
| Spindle Speed (r.p.m) | 4,000 , 6,000, 10,000 |
| Numerical Controller | FANUC Oi-MD |
| Axis Slides Design | LINEAR RAIL |
| X Axis Stroke (mm) | 500 |
| Y Axis Stroke (mm) | 350 |
| Z Axis Stroke (mm) | 400 |
| Rapid Rates (m/min) | X:48 Y:48 Z:36 |
| Table Size (mm) | 700 x 400 (600 x 350) |
| Max Table Weight (Kg) | 500 (100 + 100) |
| Twin Pallet Option | (2 PALLETS) |
| Machine Weight (Kg) | 3,800 (4,000) |
| Machine Dimension LWH (mm) | 1,900 x 3,500 x 2,610 |
| Tool Changer Style | DIAL MAGAZINE |
| Tool Change T/T (sec) | 1.6 |
