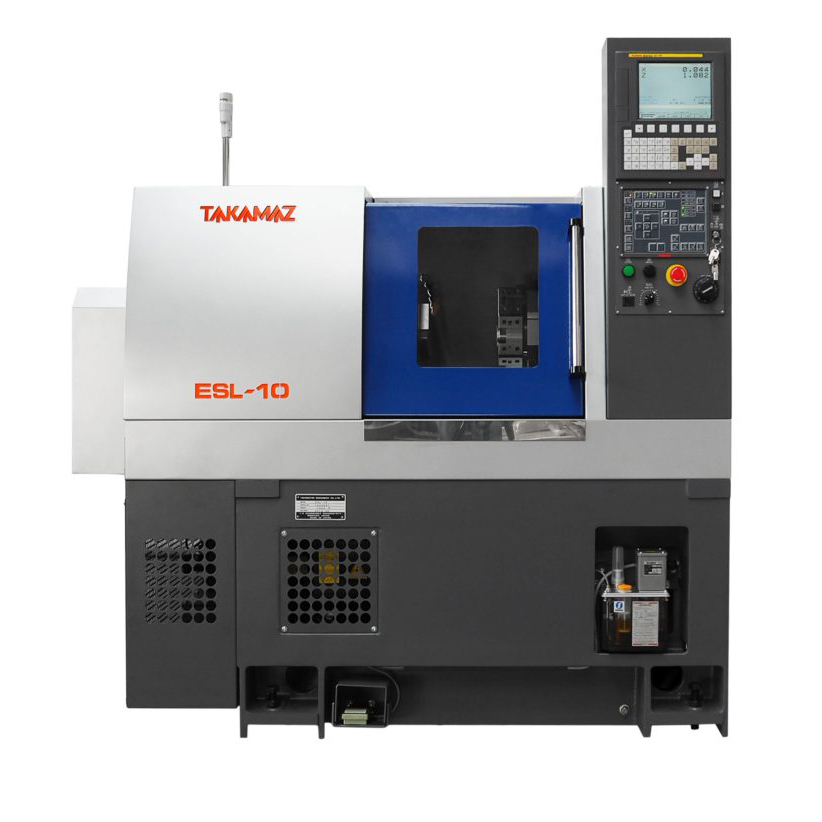

ESL10A / B Single Spindle
Single Spindle – Single Turret
This 6-Inch chuck machine has a maximum turning diameter is Ø180mm. The space-saving compact design of 1450mm width, 1295mm length, makes the machine easy to install.
Ergonomically the operation panel is mounted at the optimum height making the monitor easy to view and be able to work at a comfortable position. In addition, work is improved by placing frequently used buttons on the right side of the operator. This also prevents malfunction.
Because the distance from the floor to the centre of the spindle is only 960mm and from the door to the centre of the spindle is easily accessible, the chuck and other parts replacement also can be done with ease. This lead in model from Takamaz is manufactured to give the standards and reliability expected from Takamaz while achieving a budget package. For more details and a quotation please contact our offices or visit http://takamaz.eu/
| Spindle Size / Design | A2-5 |
| Spindle Speed (r.p.m) | 4,500 |
| Power (Kw) | 5.5 /. 3.7 |
| Bar Capacity (mm) | Solid (56Ø) |
| Numerical Controller | Fanuc Oi-TD |
| Axis Slides Design | LINEAR RAILS |
| X Axis Stroke (mm) | 120 |
| Z Axis Stroke (mm) | 230 |
| Rapid Rates (m/min) | X:12 Z:18 |
| Chuck Size (mm) | 150 |
| Machine Weight (Kg) | 1,670 |
| Machine Dimension LWH (mm) | 1,450 x 1,295 x 1,650 |
| Tool Changer Style | SERVO ROTARY TURRET |
| Tool Capacity (pcs) | 8 |
| Chip Conveyor | SPIRAL / SLATBAND REAR |
