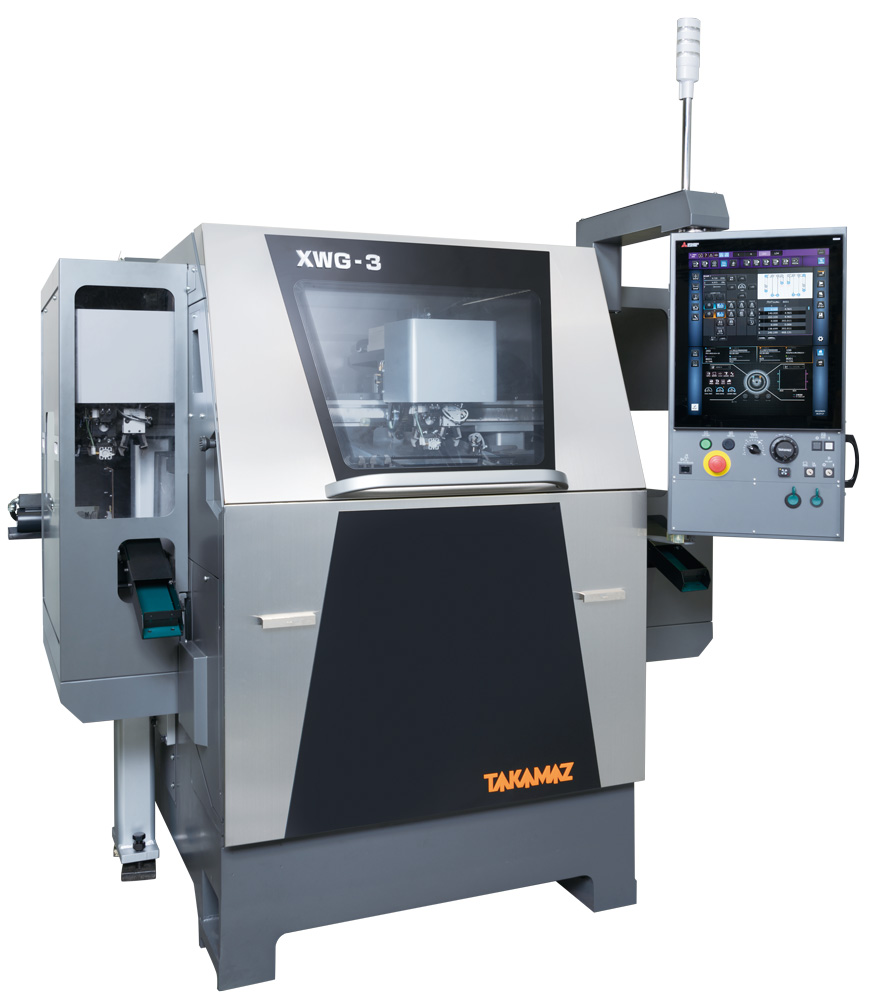

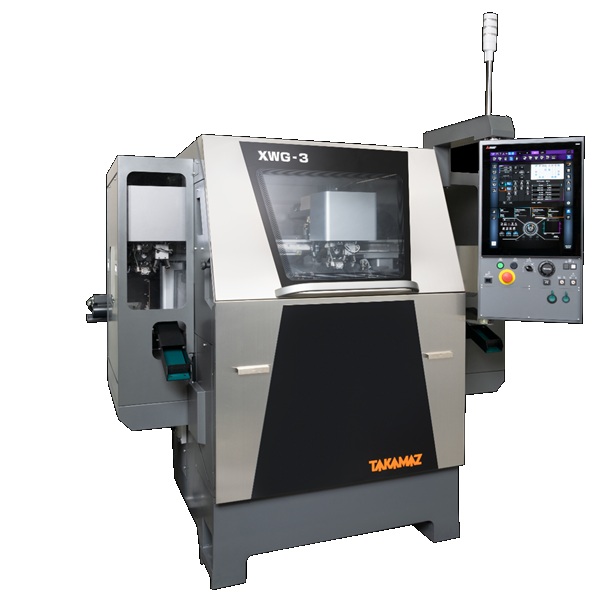

XWG-3 Twin Spindle – Twin Plattern

The XWG-3 is the replacement model of the previous XW30PLUS machine. The machine has been redesigned to give greater ergonomics wile the controller has been upgraded to achieve a more enhanced operator interface.

Equipped with a two built in spindles with a high-efficiency motor with an output of 5.5/3.7 kW  built-in motor. The unit is compatible with chucks up to 4 inches, and a hydraulic cylinder can also be equipped as an option to enable stable mass production machining of work pieces that require a strong gripping force.

The slide ways are placed directly in front of the spindle and operator so allowing for excellent ergonomics for the operator while setting.

The reviewed cooling circuit has made the oil controller that used to be essential for short-cycle machining unnecessary*, reducing the cost and space requirements. * An oil controller is still required with some specifications.
Generally on a machine with 2 spindles, a heat imbalance arises in cases where different cutting is performed at the left and right sides. This leads to unstable accuracy. The XW-30 series is built with a cooling tank inside the bed for the two spindles to suppress thermal displacement, achieving stable accuracy over the long term (patented).

The loading system has a standard setup that achieves a unload and reload time of 3-3.5 seconds (dependent on component geometry and location)

Space savings have been realised with a machine 1,340 mm wide (bed width: 1,040 mm), 2,120 mm deep and 1,750 mm high. Compliance with CE standards has been made possible, enabling safe usage in Europe as well.
For more information and the complete range of machines please see our brochure
